[RT76P] Long Range GMRS Radio with Display

Roll over image to zoom in Click on image to zoom

[RT76P] Long Range GMRS Radio with Display

Name: [RT76P] Long Range GMRS Radio with Display
Brand: Retevis
SKU: A9180A
Price: 64.0 USD
Availability: OutOfStock

RetevisSKU: A9180A

Price:

$64.00 USD

Shipping calculated at checkout

Quantity:

Pickup currently unavailable at Bigtent Showroom

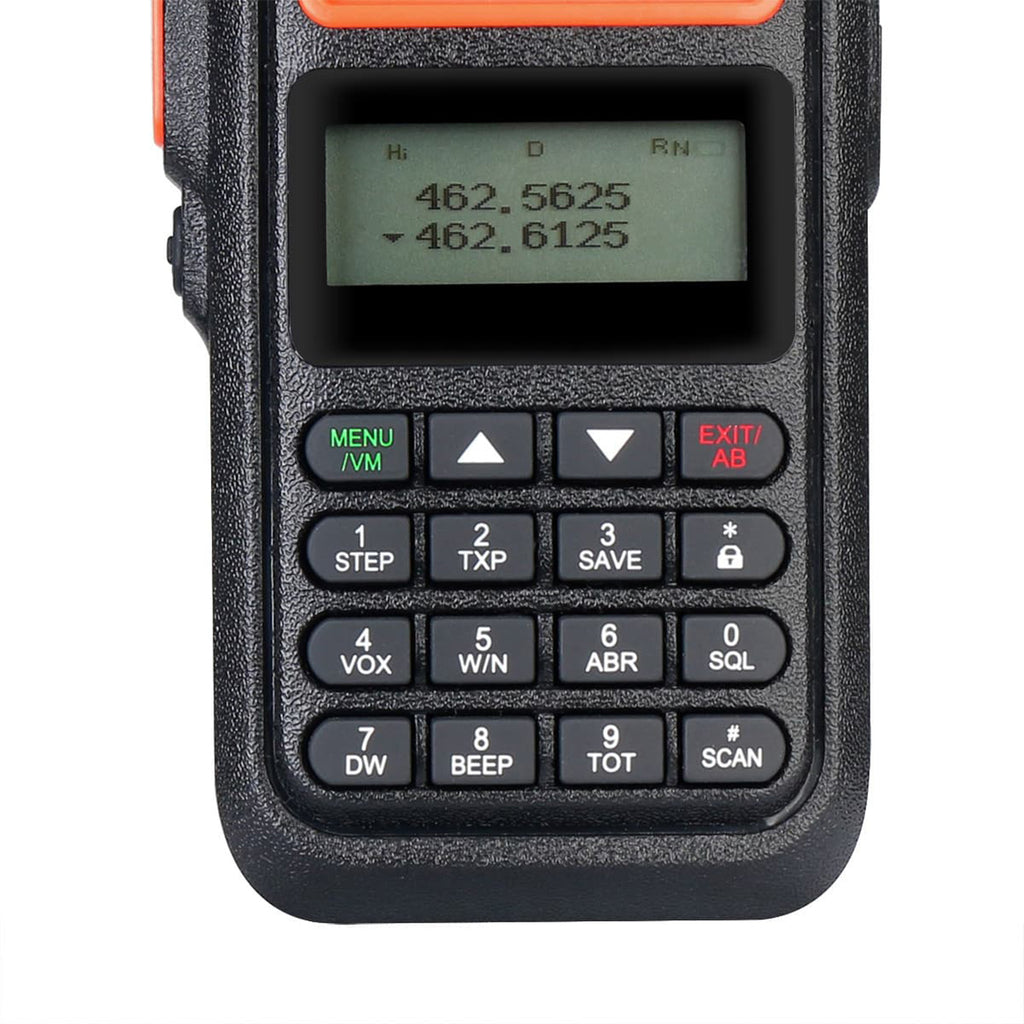

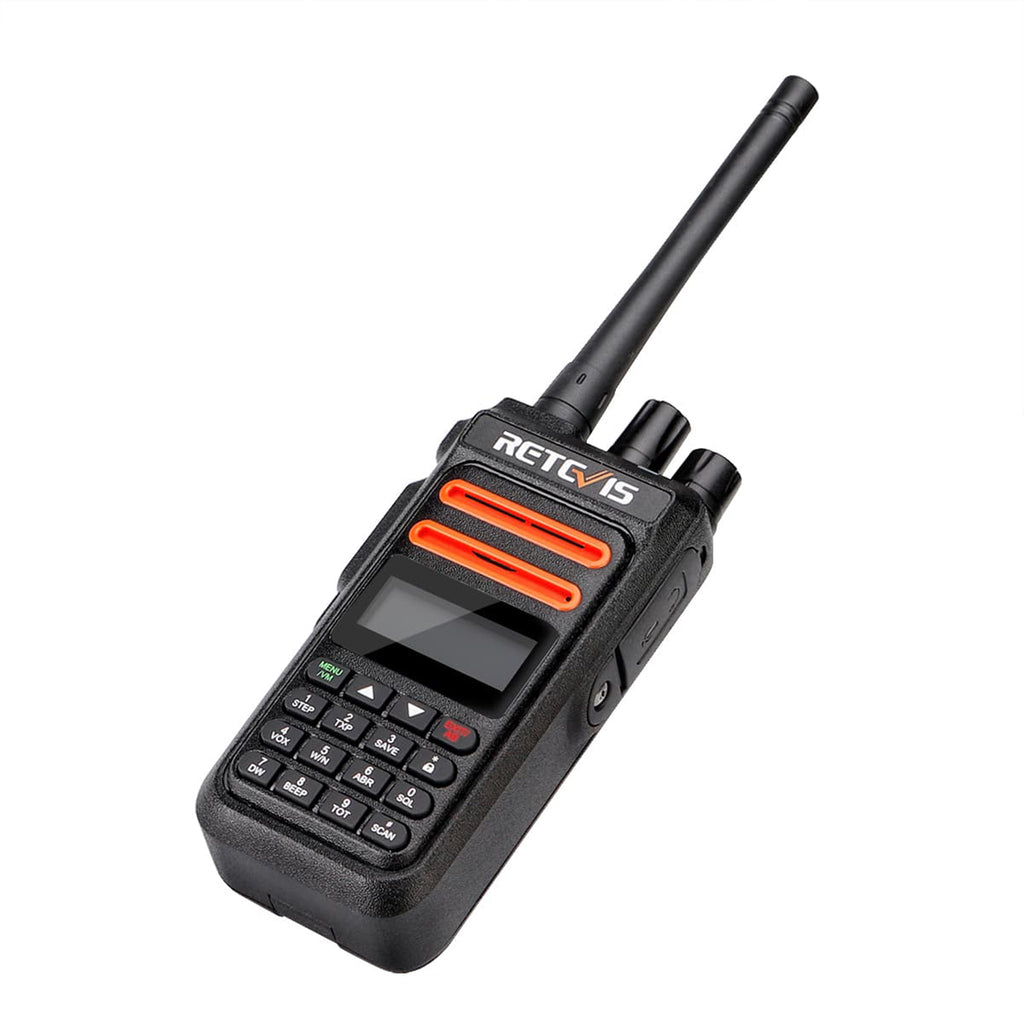

LCD display
Retevis RT76P comes with the LCD display, it will help you to check your current channel, CTCSS, POWER and so on, easily read the channels status.
NOAA weather Channels and FM radio function
Be prepared for storms and emergencies with the built-in NOAA radio receiver providing coverage of all government operated weather channels. And FM radio, can make your relax during you outdoor.
GMRS band
Retevis RT76P is the GMRS BAND licensed radio, the users need to get the License from FCC. It has the longer communication range than FRS band radio.
Repeater function
Retevis RT76P with the 8 repeater channels, help you to connect your RT76p with other GMRS repeater like Retevis RT97 GMRS repeater. Extend your RT76P communcation range.

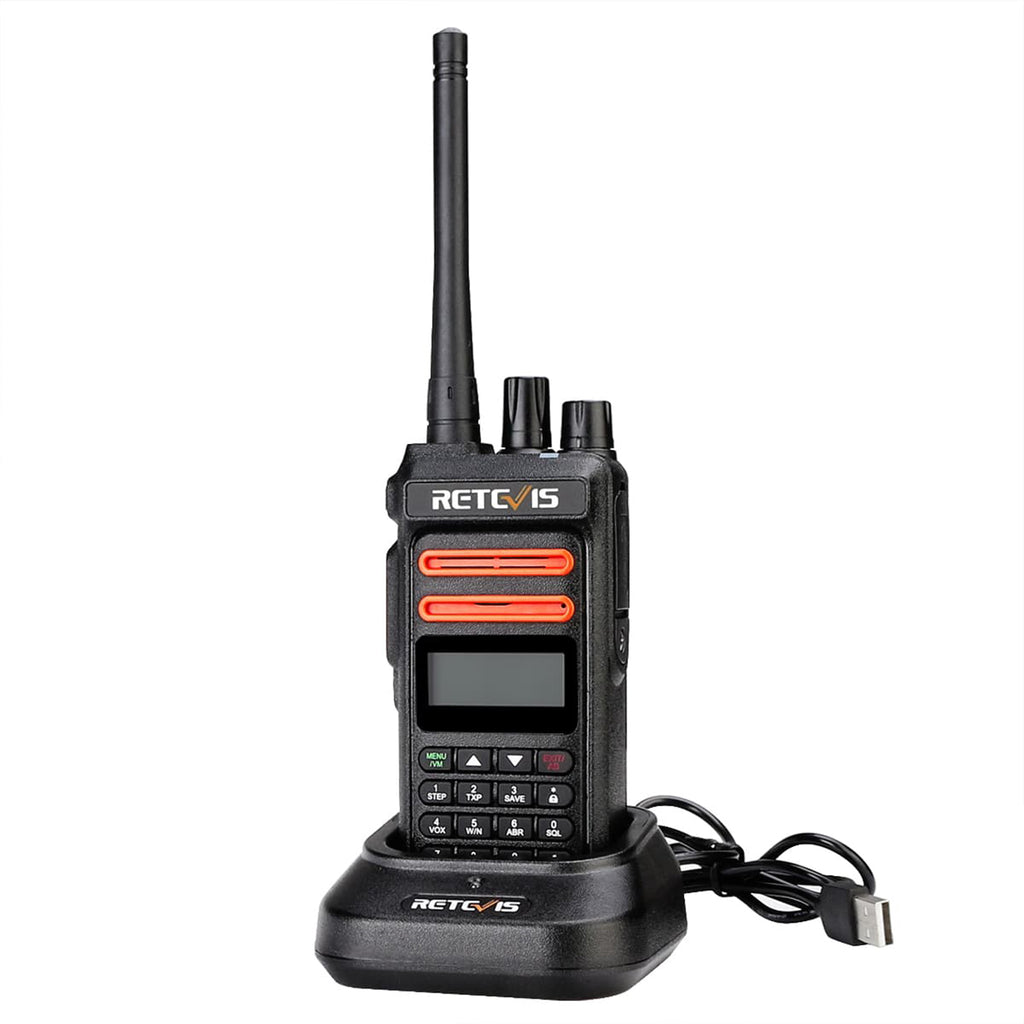

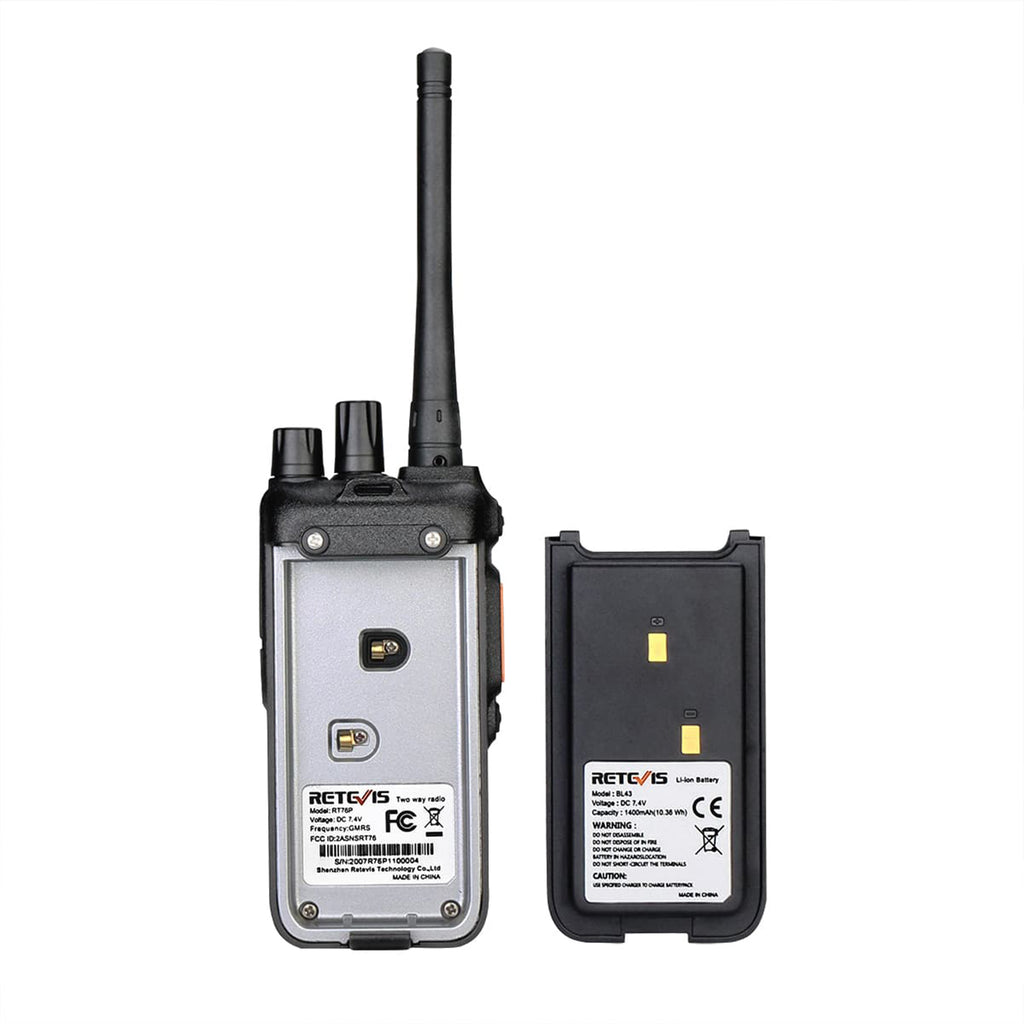

Rechargeable Long Battery Life
Long standby battery can make sure the working time longer, keep in touch with your partners anytime.

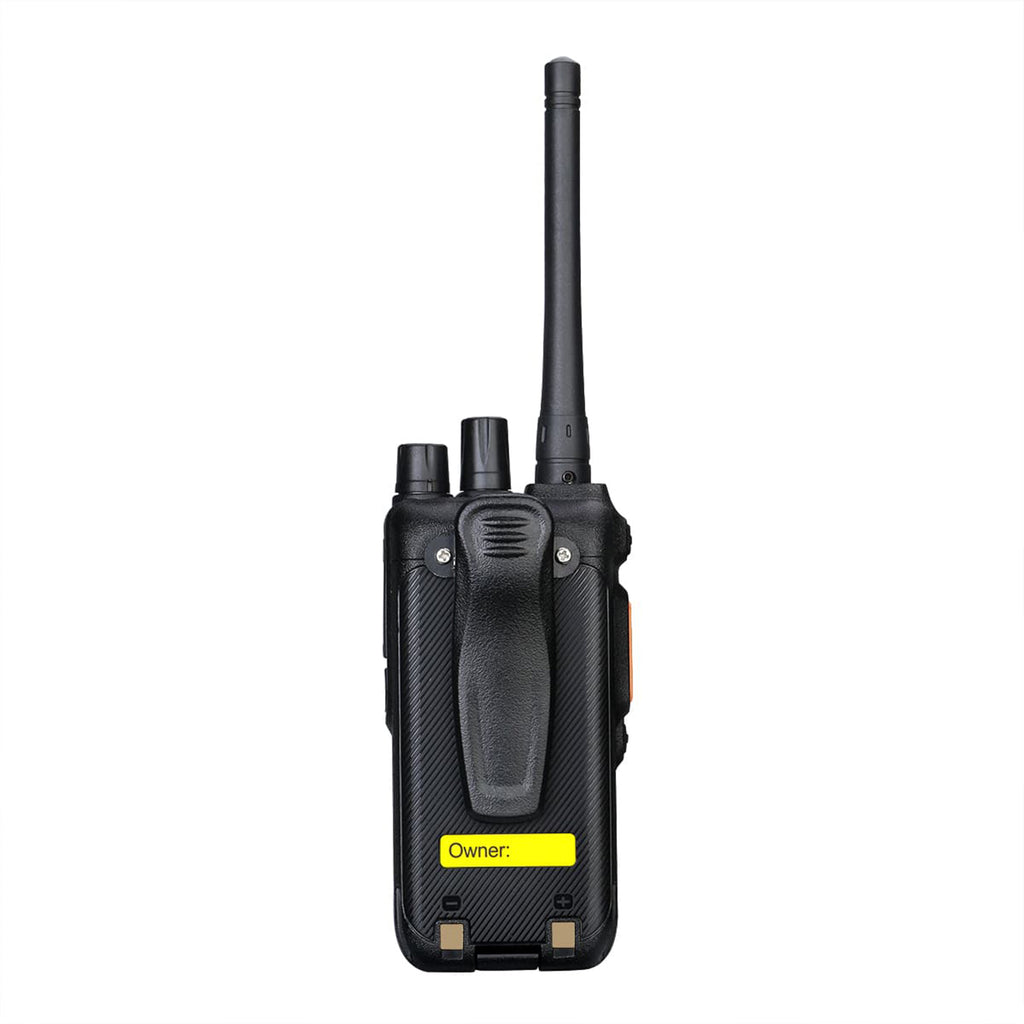

Offers the belt clip
With a convenient clip, you can free your hands by attaching the portable 2-way radios to your belt
Retevis RT76P also has other functions like Monitor, Scan, VOX, TOT,Dual watch, and so on.

Manual (PDF)

Download the RT76P manual here.

Firmware/ Software

RT76P-softwareV1.5.4
RT76P-FW

Specifications
Model: RT76P
Frequency Range: GMRS
Channel number: 30
RF Power: ＜5W
Frequency Stability: ±2.5ppm
Working Voltage: 7.4V DC 1400mAh
Antenna Allocation: Pauperization antenna
Antenna Impedance: 50Ω
Working mode: Same frequency single working or
different frequency single working

Transmitter
Adjacent Channel Power: ≥65dB/≥62dB
Wide/Narrow: 0.75kHz土0.1 kHz/0.4kHz土0.1kHz
Audio Distortion: ≤5%
Modulation Sensitivity: 8-12mV
Maximum Frequency Deviation: ≤5KHz/≤2.5KHz
Spurious Power: ≤7.5uW
Modulation Mode: 16KΦF3E/ 11 KΦF3E
Transmit current: ≤1.6A
Preemphasis Character: 6dB/every time the frequency will increase

Receiver
Sensitivity: ≤0.2uV/≤0.25uV
Voice Output Power: ≥500mW
Audio Distortion: ≤5%
Obstruct: ≥85dB
Intermodulation: ≥65dB/≥60dB
Adjacent Channel Selection: ≥65dB/≥60dB
Spurious Rejection: ≥65dB
Receiving current: ≤430mA
