Van Beest Green Pin Hard Shackles

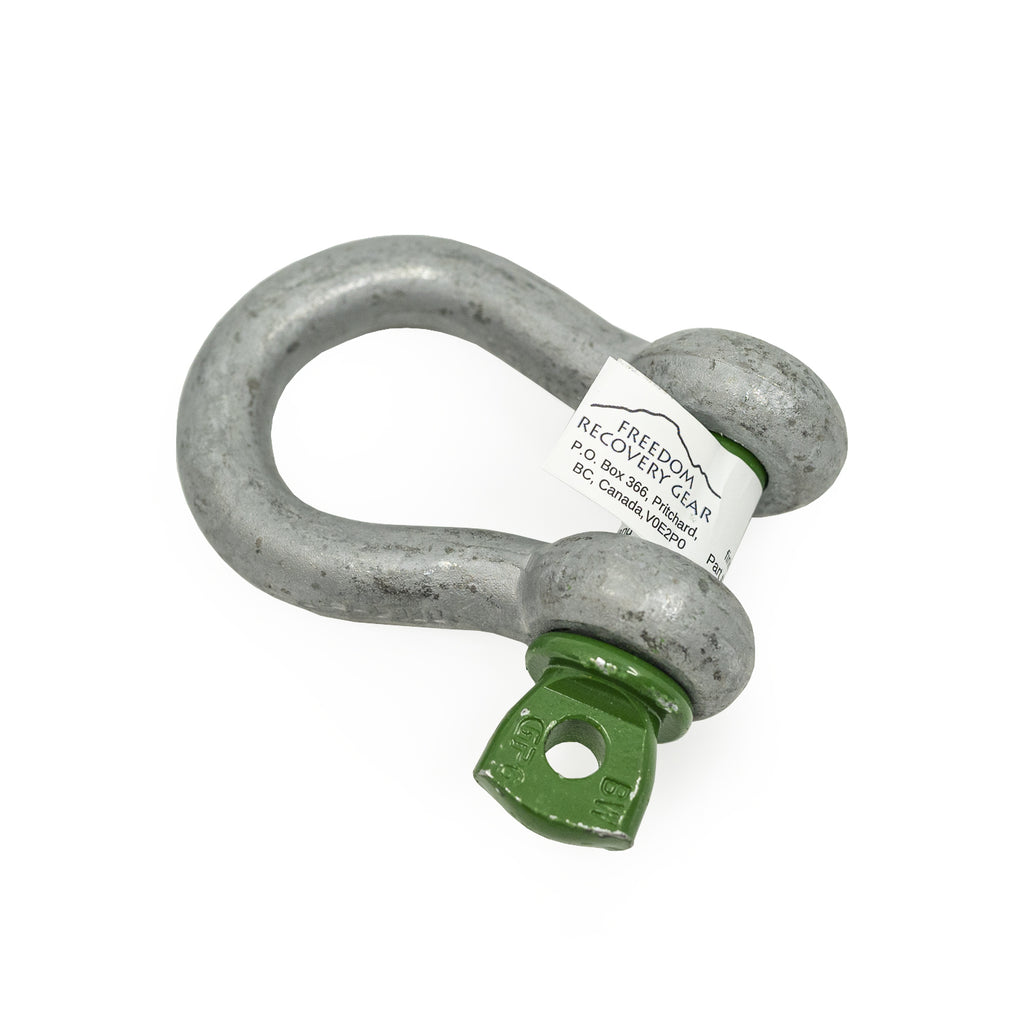

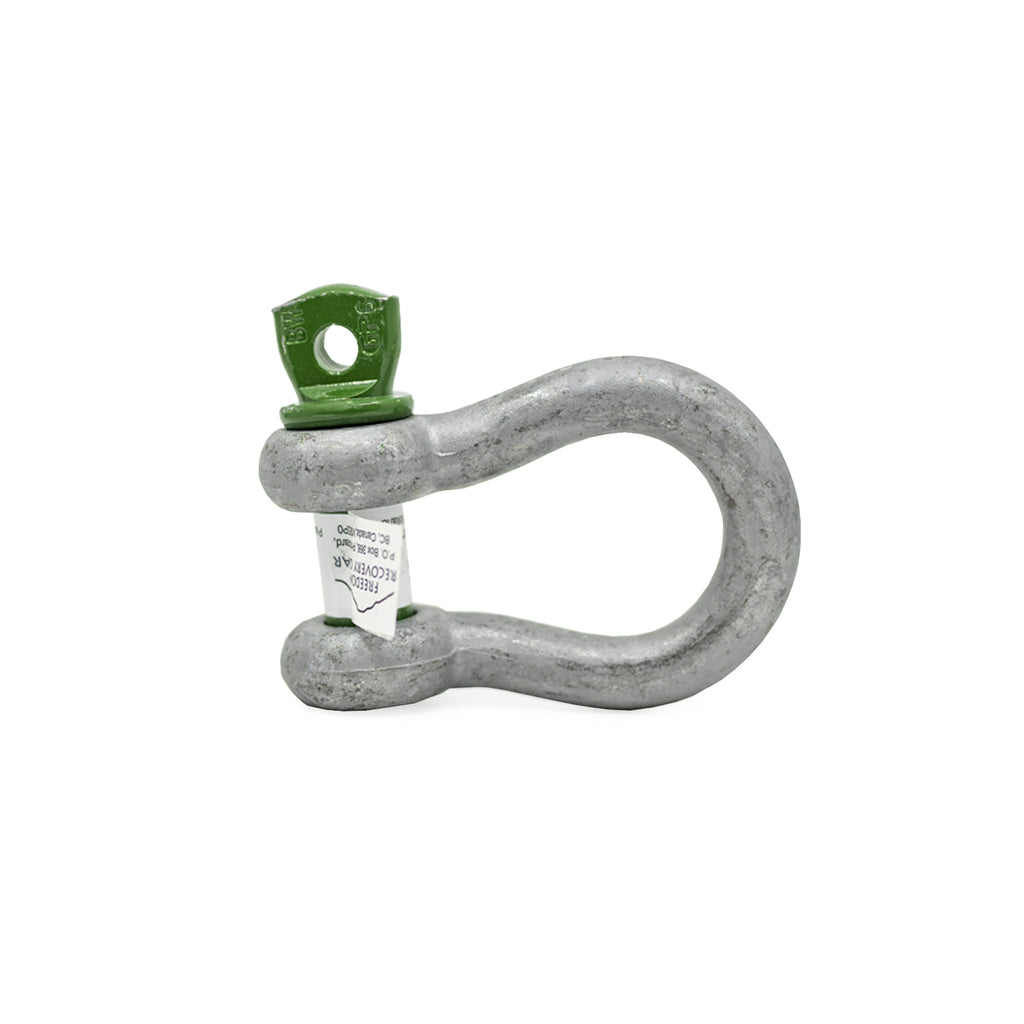

The Green Pin® Bow Shackle SC is a bow shackle with a screw collar pin. The screw pin enables quick (dis)assembly which makes the shackle perfect for rigging activities in which assembly and disassembly occur relatively frequently.
The Green Pin® Bow Shackle SC can be used for both one-leg and multi-leg systems. Due to the galvanization of the shackle its long-term durability is assured.
The shackle's design reduces the wear of (wire) rope as the screw thread is hidden in a chamber.
Particularly important for use offshore, the Green Pin® Bow Shackle SC conforms to a wide range of certifications from class societies such as DNV GL.
The shackle is available in a range with a working load limit from 1 up to 6.5 ton.
bow and pin high tensile steel, Grade 6, quenched and tempered
- Safety Factor:
MBL equals 6 x WLL
hot dipped galvanized
- Temp. Range:
-40°C up to +200°C
2.1 / 2.2 / 3.1 / MTCa / DNV-GL ST-0378 / CE / ABS
EN 13889 and meets performance requirements of US Fed.
Spec. RR-C-271 Type IVA Class 2, Grade A, from 2 t and upward these shackles comply with ASME B30.26
