[CAPON 120D] Rechargeable Cap Light
We are introducing 3 new additions (80C, 120D, and 120H) to our CAPON series that gives you the freedom to choose from light to heavy-duty depending on your needs.
Manual (PDF)
Download the Capon 120D manual here.
Expert's Recommendations
![[CAPON WEARABLE KIT]](http://bigtentoutdoors.com/cdn/shop/products/CAPON-WEARABLE-KIT_08.jpg?v=1734910051&width=1500)
![[HEADY2] Rechargeable Headlamp](http://bigtentoutdoors.com/cdn/shop/products/Heady2_29.jpg?v=1733876424&width=1500)
![[ULTRA MINI] Rechargeable Area Light](http://bigtentoutdoors.com/cdn/shop/products/Ultra-mini_26.jpg?v=1733876517&width=1500)

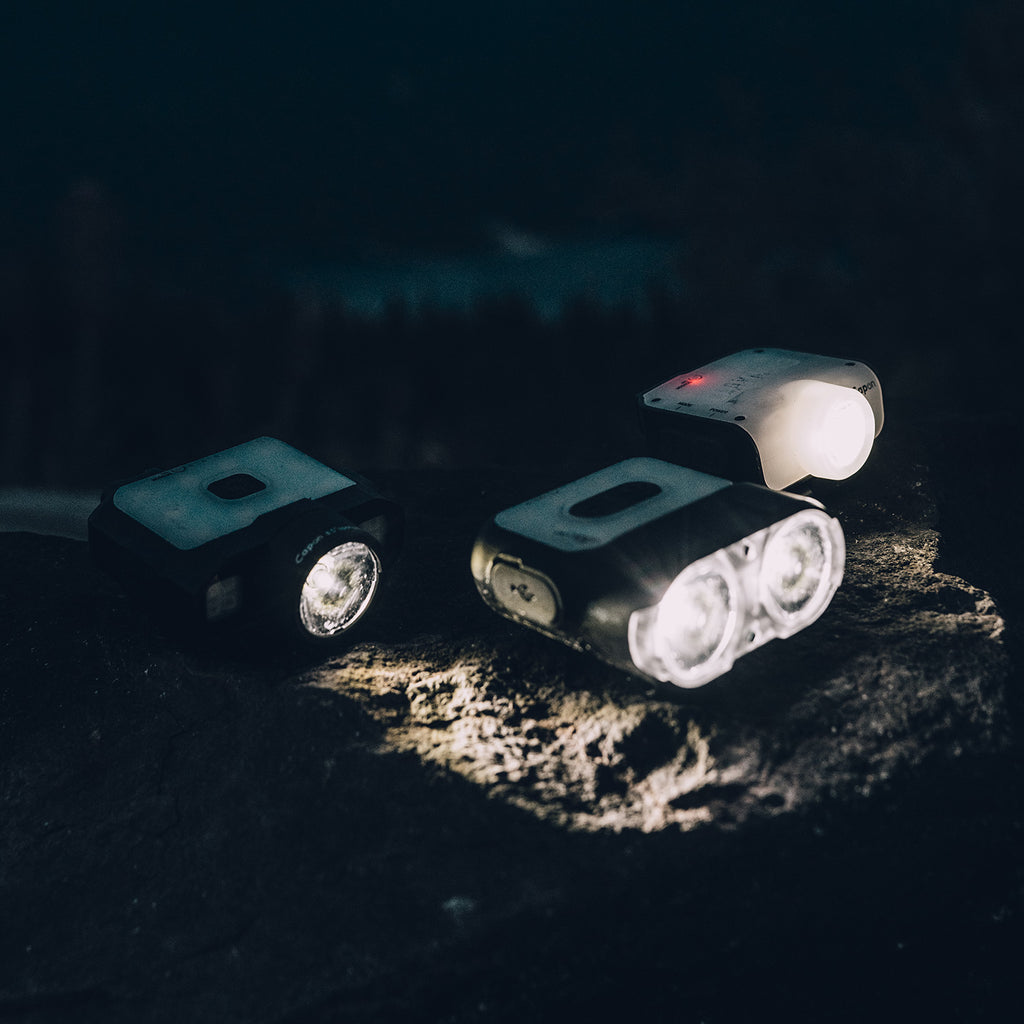

Feel the Freedom with the New Capon Motion Sensor Series
We are introducing 3 new additions ( 80C, 120D, and 120H ) to our CAPON series that gives you the freedom to choose from light to heavy-duty depending on your needs. All 3 new CAPON models are equipped with an intuitive motion sensor so activating and deactivating the light will only be a swipe away. Compare the specs for your needs from simple backpacking to overlanding and industrial applications.
Motion Sensor
Wave hand to turn On / Off
Ultra Light Weight
55 g / 0.12 lb
3 Lighting Modes
Spot / Red / Flood mode
No More Batteries
Recharge via USB C-Type
Durable Structure
Dust / Water resistant
Horizontally Adjustable
Tilt up to 180 degrees
- Ultra-compact (55 g / 0.12 lbs),multipurpose clip-on light
- Motion sensor On / Off function available
- USB Type-C rechargeable (1,200 mAh)
- 3 lighting modes; focus-light, flood mode, and diffused light with red LED
- Focus_3 - 45 hrs, Flood_3 - 45 hrs, Red diffused_4 - 60 hrs of runtime
- Focus_25 - 380 lumens, Flood_25 - 340 lumens, Red diffused_1 - 40 lumens of brightness
- In focus mode, 4 - 100 meters (13 - 328 feet) of light distance
- Fine dimming control by one button press and hold
- Battery level indicator, SOS mode included
- Easy to fasten clip/carabiner ring for hanging
- Dust/weather resistant1 lm = 1 lumen = 1 candlelight
Capon Series, Fit for Any Adventure
Multi Use, Not Only Camping
Use when camping as a portable personal light

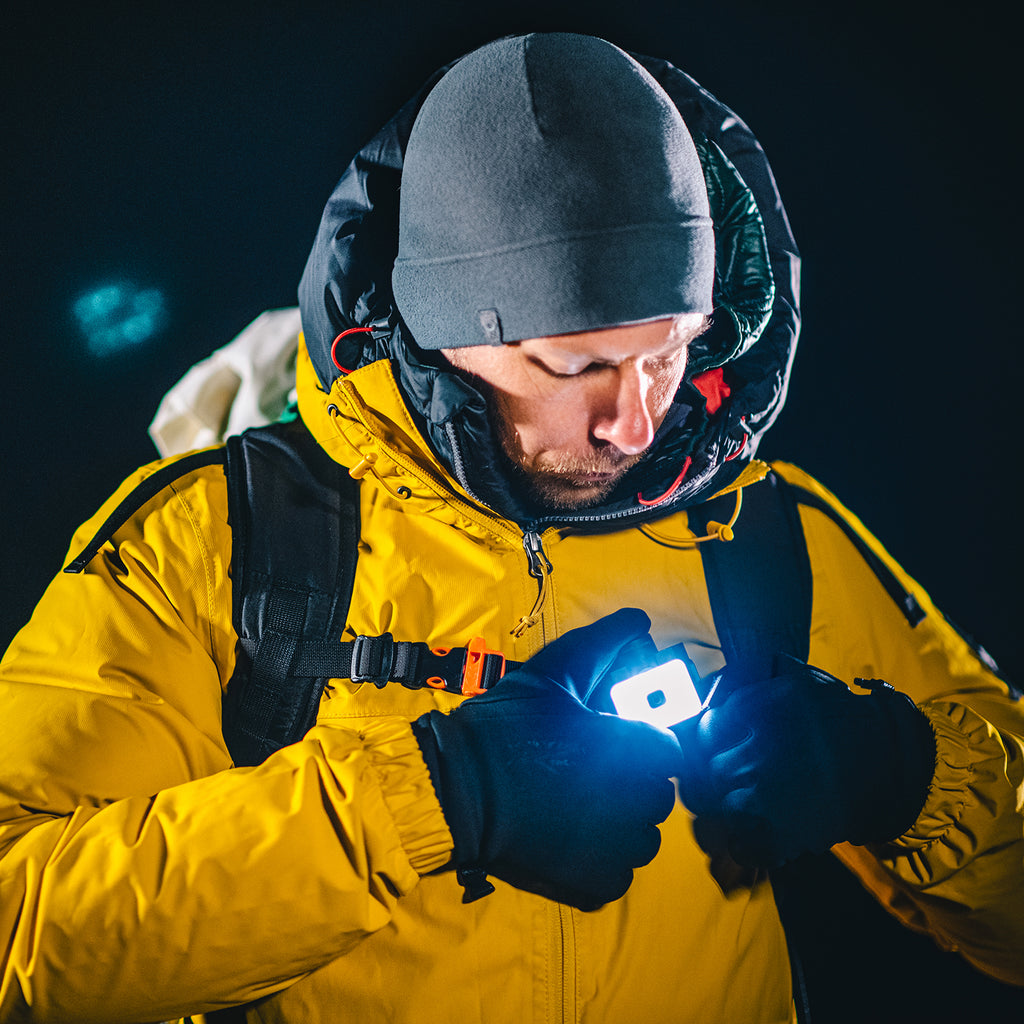

Perfect companion for safe night hiking
Dimmable red for nighttime activity

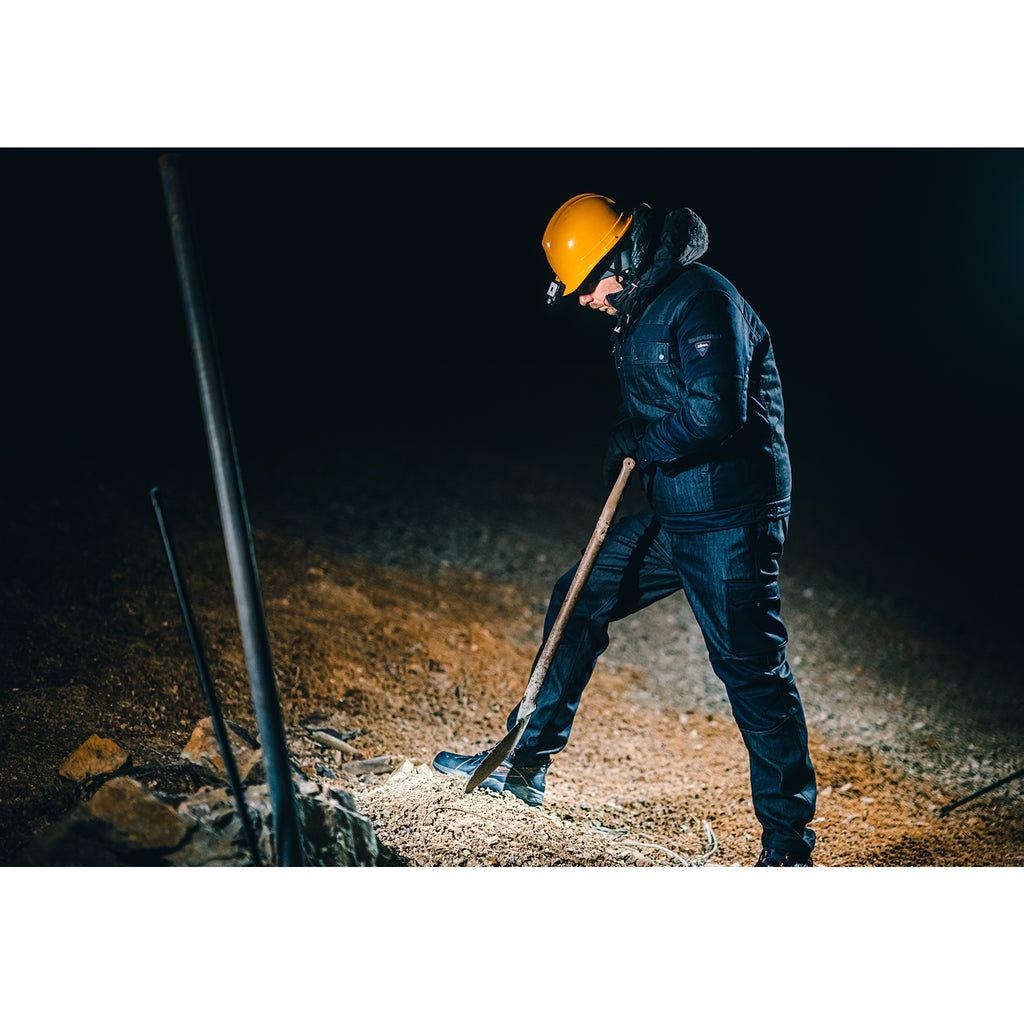

Safely work at a construction site day & night
Ultra Light Weight
Minimized weight, maximized performance
Unparalleled performance from the light and durable polycarbonate body. Simply clip on your favorite cap to illuminate the world in front of you.
Ultra Light Weight
Minimized weight, maximized performance
Unparalleled performance from the light and durable polycarbonate body. Simply clip on your favorite cap to illuminate the world in front of you.
One Battery, Endless Power
Capon 80C(800mAh) / Capon 120D(1,200mAh) / Capon 120H(1,200mAh)
With the high-capacity battery, you can use the Capon for up to 45 hours(max). Never worry about battery life.
* Battery running time can vary from the surrounding environment and the manner of use.
One Battery, Endless Power
Capon 80C(800mAh) / Capon 120D(1,200mAh) / Capon 120H(1,200mAh)
With the high-capacity battery, you can use the Capon for up to 45 hours(max). Never worry about battery life.
* Battery running time can vary from the surrounding environment and the manner of use.

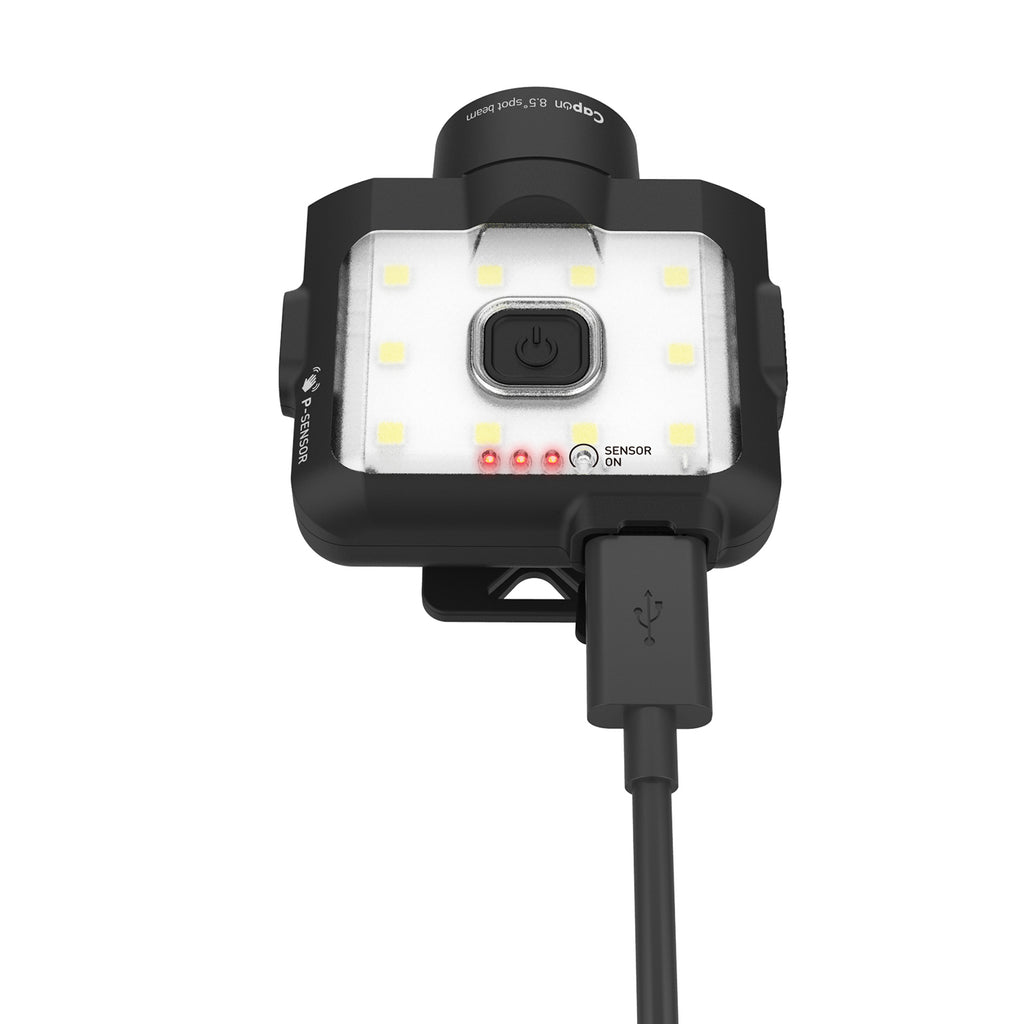

Ditch wasteful alkalines and recharge conveniently
With the USB C-Type cable provided, charge quickly using power banks, laptops, phone chargers, and any other USB ports.
Ditch wasteful alkalines and recharge conveniently
With the USB C-Type cable provided, charge quickly using power banks, laptops, phone chargers, and any other USB ports.
Only a Swipe Away
All CLAYMORE CAPON lights are equipped with a sensitive motion sensor therefore activating and deactivating your CAPON is only a swipe away.
Sensor Mode
1. When the light is ON, press the Mode button for over 2 seconds to activate the Sensor Mode. Repeat to deactivate the Sensor Mode.
2. While the sensor is operating, the sensor indicator will be on. (reference bottom image)
Sensor Mode Automatic Off Function
1. To reduce the stand by power consumption, the sensor mode is automatically turned off after 5 hours when there is no movement.
2. While the sensor is operating, the sensor indicator will be on. (reference bottom image)
3. To prevent false sensor detection, turn the sensor off when not in use.
* The sensor may not work under bright sunlight or in bright environments.
Sensor Mode
1. When the light is ON, press the Mode button for over 2 seconds to activate the Sensor Mode. Repeat to deactivate the Sensor Mode.
2. While the sensor is operating, the sensor indicator will be on. (reference bottom image)
Sensor Mode Automatic Off Function
1. To reduce the stand by power consumption, the sensor mode is automatically turned off after 5 hours when there is no movement.
2. While the sensor is operating, the sensor indicator will be on. (reference bottom image)
3. To prevent false sensor detection, turn the sensor off when not in use.
* The sensor may not work under bright sunlight or in bright environments.

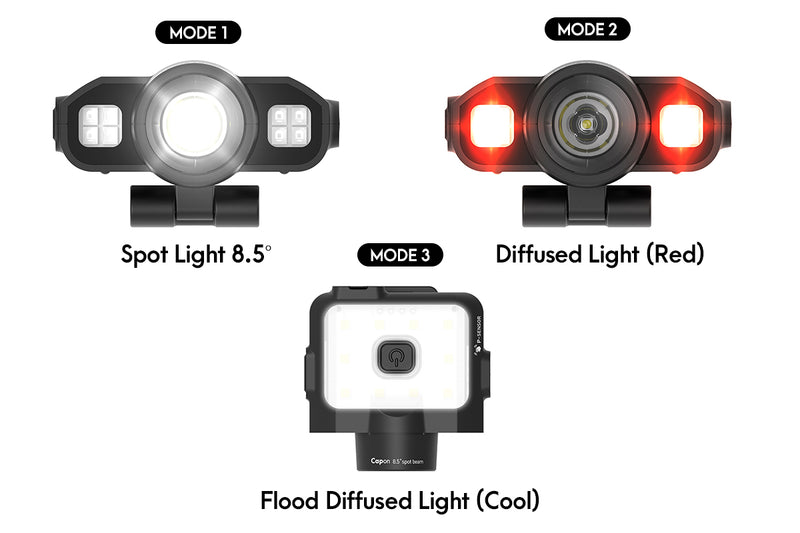

Versatile Light Modes
Spot and Flood settings offer distance and area lighting to serve a variety of tasks.
* Capon contains a memory function that returns it to the last setting.
Versatile Light Modes
Spot and Flood settings offer distance and area lighting to serve a variety of tasks.
* Capon contains a memory function that returns it to the last setting.
Various Mounting Options

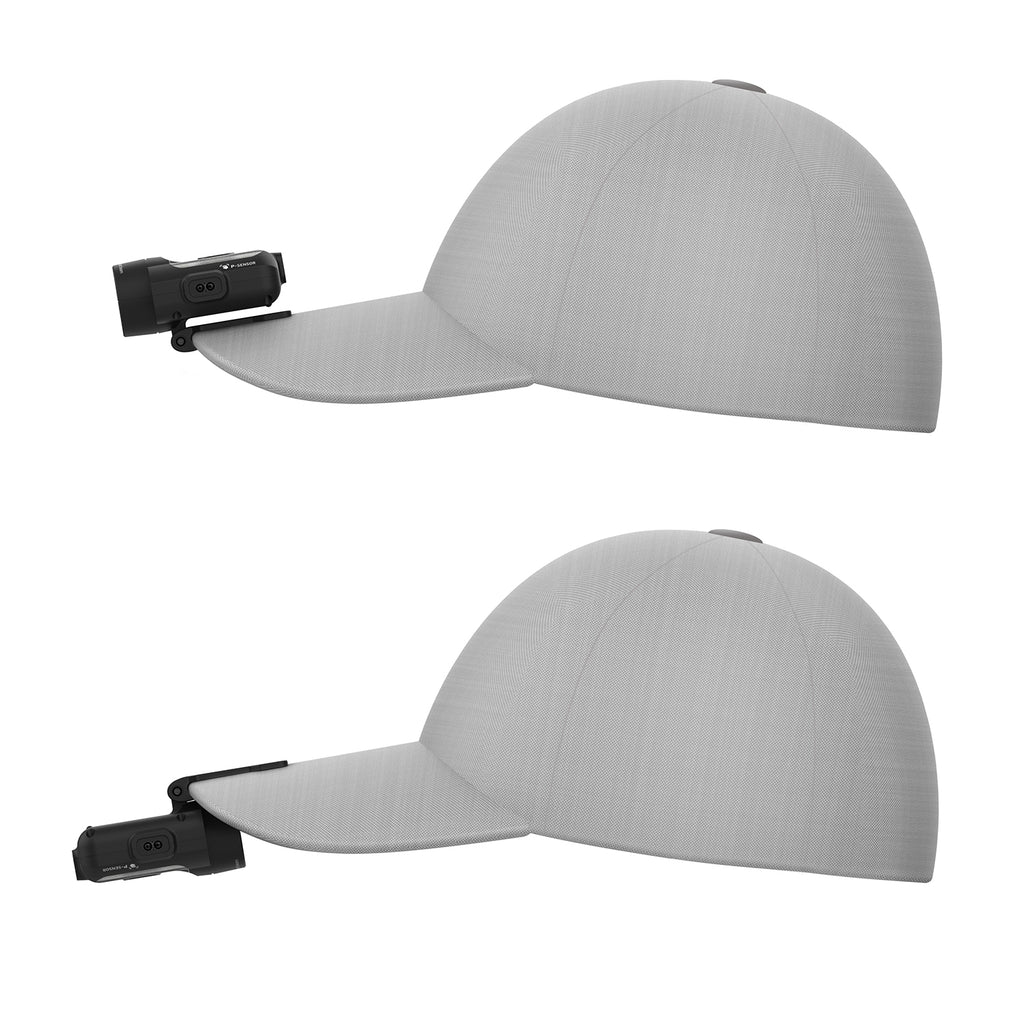

Attaching to a Cap & Hard Hat
Fully insert clip to the visor of the cap/hard hat and adjust the angle for proper use. Adjustable up to 180 degrees, for focused and diffused modes.
Attaching to a Cap & Hard Hat
Fully insert clip to the visor of the cap/hard hat and adjust the angle for proper use. Adjustable up to 180 degrees, for focused and diffused modes.

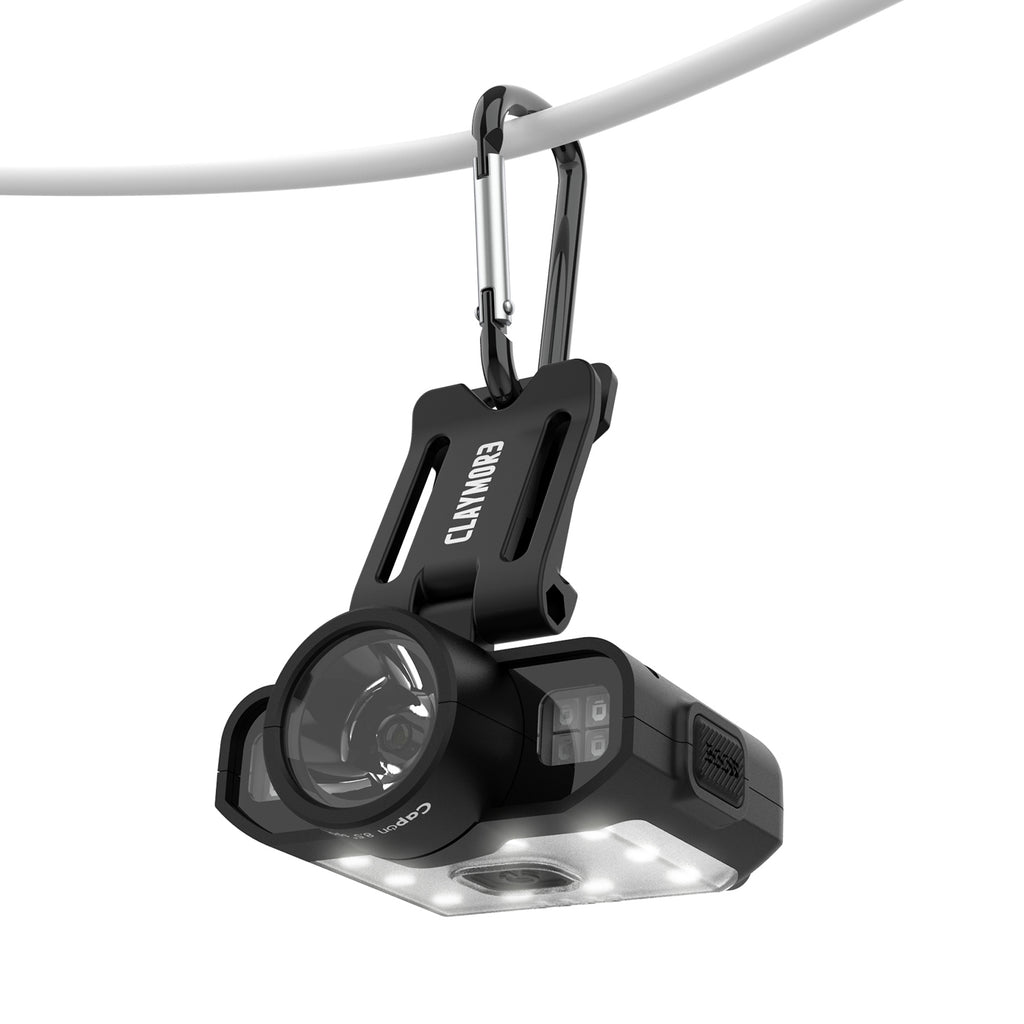

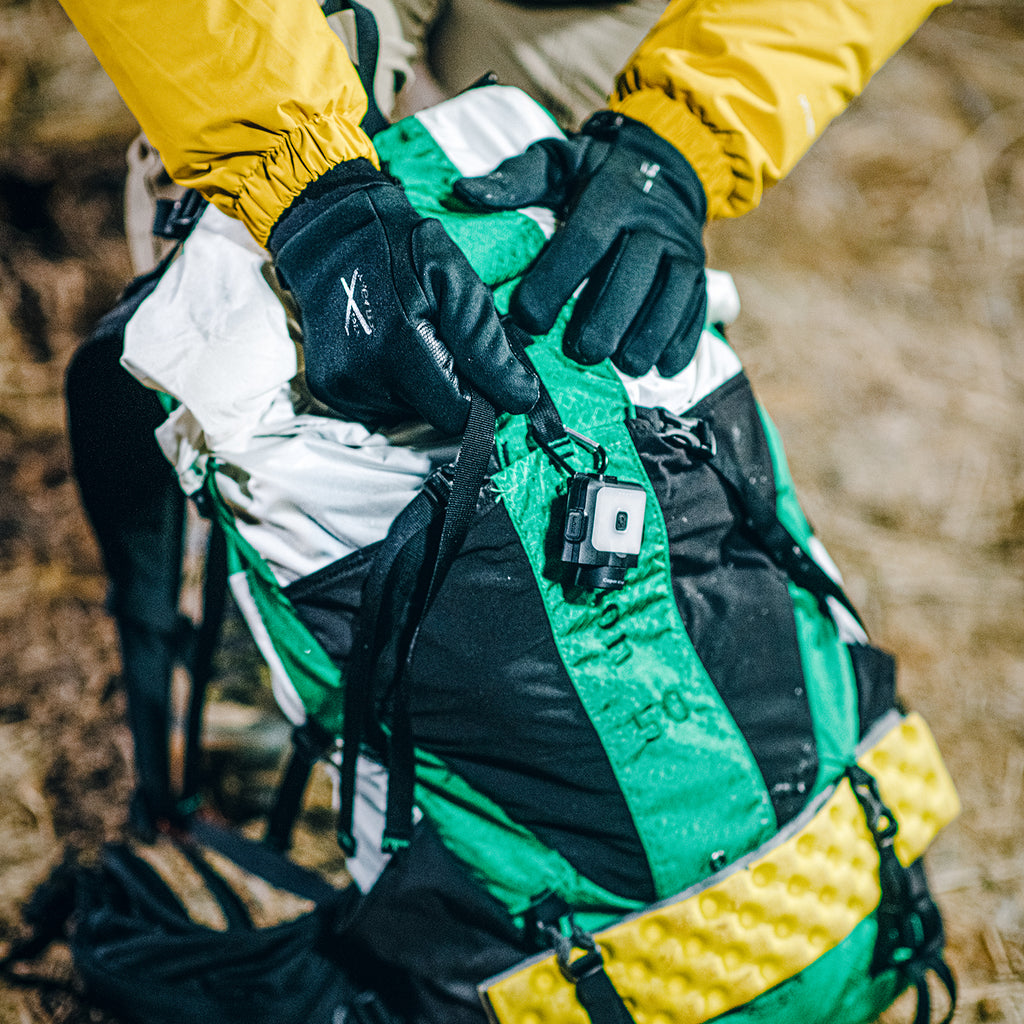

Carabiner
Compatible with carabiners and hangable on a line.
Carabiner
Compatible with carabiners and hangable on a line.

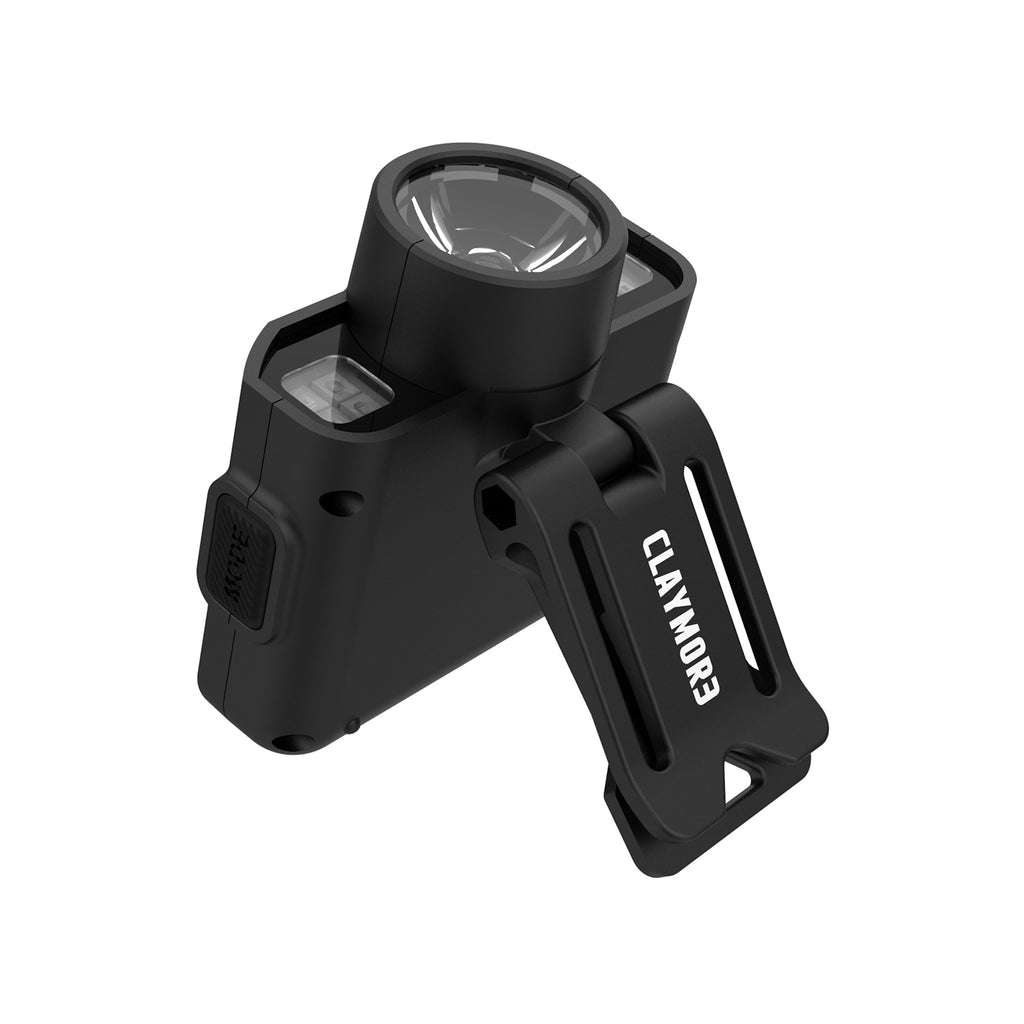

Clip
Slim clip design allows the light to be attached almost anywhere.
Clip
Slim clip design allows the light to be attached almost anywhere.

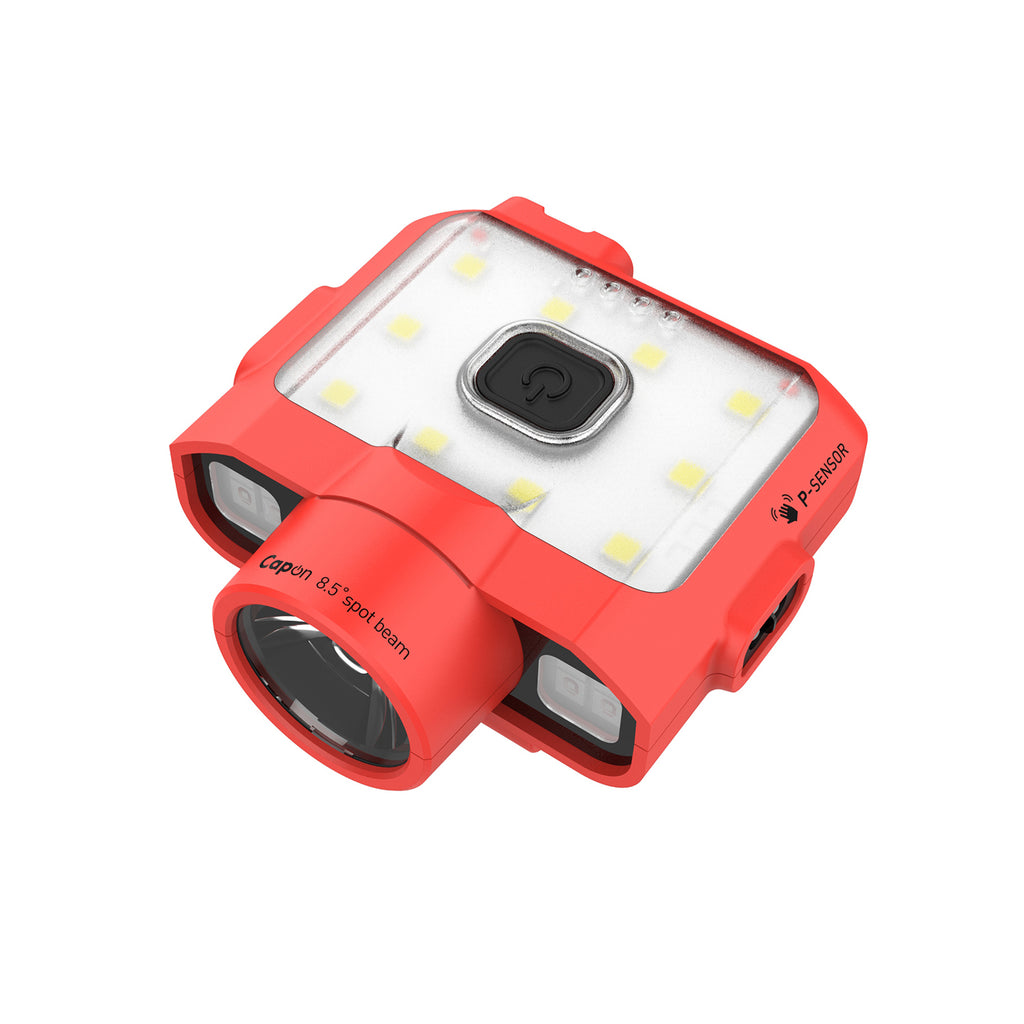

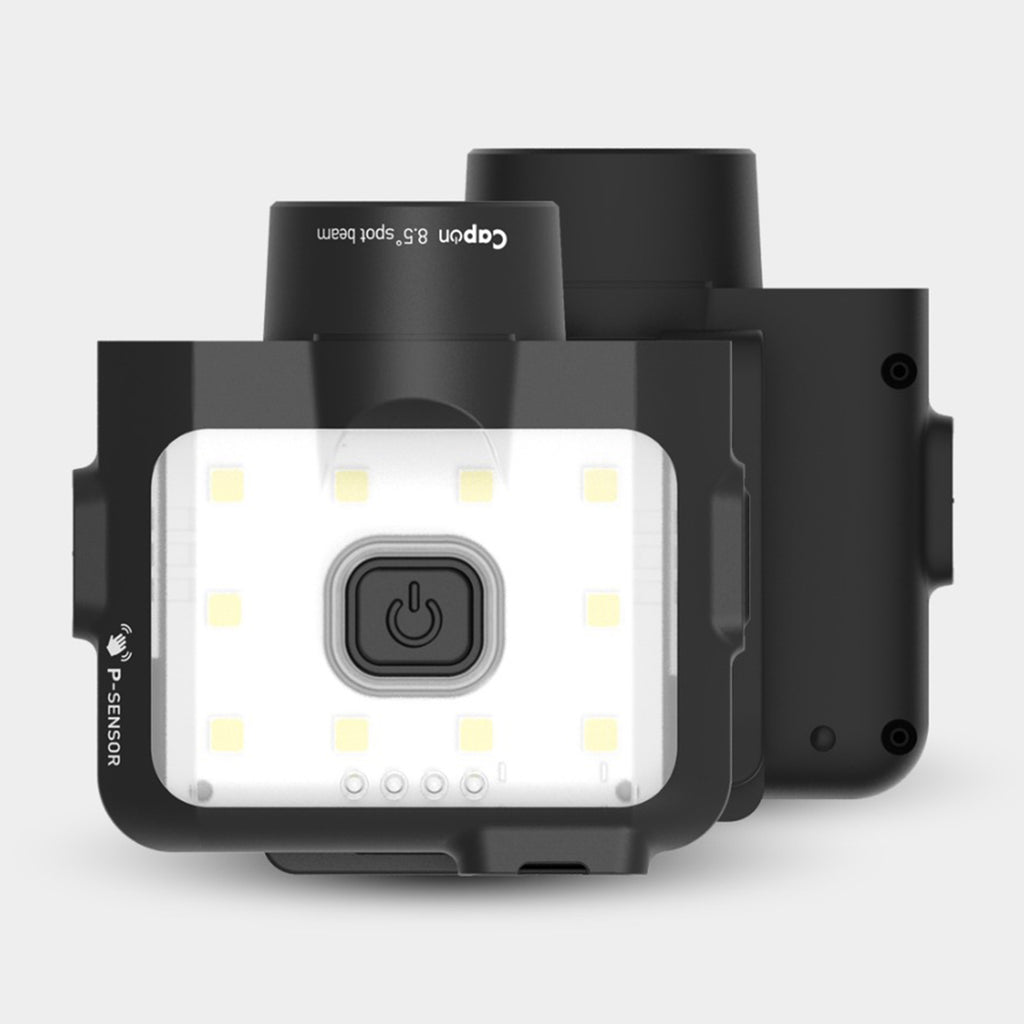

Ⓐ RED LED
Ⓑ MODE CHANGE BUTTON (SENSOR ON/OFF)
Ⓒ MOTION SENSOR INDICATOR
Ⓓ BATTERY LEVEL INDICATOR
Ⓔ ON/OFF BUTTON (DIMMING CONTROL / SOS FLASH)
Ⓕ DIFFUSED LIGHT LED
Ⓖ FOCUSED LIGHT LED, LENS
Ⓗ USB CHARGING PORT
Ⓘ INFRARED PROXIMITY SENSOR
Specifications
5,700k
25-380Lm
Li-Polymer 3.7V 1,200Ah(4.44Wh)
2hrs
3~45hrs
DC 5V 1A~
54 x 57.3 x 33.7mm
55g
